Camera Ip Wifi Cube 4Mp M Ir15M Sd Card Microfono Dc5V

Informazioni

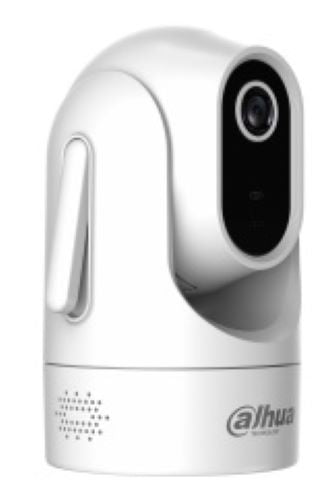

Dahua H4C - Telecamera cube IP WIFI 4MP, mic e speaker integrati, rotazione pan 355°

Specifiche Tecniche

• Telecamera cube IP/Wi-Fi da interno, sensore CMOS progressivo 1/2.8”, risoluzione 4 MP a 25fps, H.265+, rotazione PAN 325° / TILT -20°~100°, ICR, ottica fissa 4 mm, portata IR fino a 15 m, 1 porta LAN 100 Mbps, connessione Wi-Fi 2.4 G, 1 ingresso e 1 uscita audio con microfono e speaker integrati (comunicazione bidirezionale), 2/3D NR, IVS, tripwire, intrusion, motion detection, human detection, privacy mode, allarme sonoro, micro SD card (512 GB), alimentazione 5 Vdc (type-C) <5 W, alimentatore incluso, case in plastica
• Image Sensor  1/2.8" CMOS
• Pixel  4 MP

Dettagli

Max. Resolution  2560 (H) × 1440 (V)

ROM  128 MB

RAM  128 MB

Electronic Shutter Speed  1/3s–1/100,000s

Scanning System  Progressive

Min. Illumination:

Color: 0.05

[email protected]

[email protected]

0 lux (IR light on)

Illumination Distance  15 m (49.21 ft)

Illuminator On/Off Control  Manual; Auto; Off

Illuminator Number  1 (IR light)

Focal Length  4 mm

Max. Aperture  F1.6

Field of View  H: 80.3°; V: 43.2°; D: 94.3°

Close Focus Distance  0.3 m (0.99 ft)

Iris Control  Fixed iris

DORI Distance :

Detect 31.6 m (103.67 ft)

Observe 80 m (262.47 ft)

Recognize 16 m (52.49 ft)

Identify 8 m  (26.25 ft)

Pan/Tilt Range:

Pan: 0° to 325°

Tilt: –20° to +100°

Manual Control Speed:

Pan: 57.7°/s

Tilt: 46.2°/s

Preset Speed:

Pan: 57.7°/s

Tilt: 46.2°/s

Power-off Memory  Yes

Idle Motion Preset

Smart Event

IVS  Tripwire; intrusion; Human Detection

Active Deterrence

Sound Warning  Sound warning alarm: Customizable Alarm duration: 10 s, 20 s, 30 s

Video Compression  H.264B;Smart H.265+;H.264;H.265;Smart H.264+;MJPEG

Streaming Capability  2 streams

Resolution  4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate:

Main stream: 4M/1080p/1.3M/720p@(1–25/30 fps)

Sub stream 1: D1/CIF@(1–25/30 fps)

Bit Rate Control  CBR/VBR

Video Bit Rate:

H264: 512 Kbps–8,192 Kbps

H265: 204 Kbps–7,936 Kbps

Day/Night  Auto (ICR)/Color/B/W

White Balance  Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control  Auto; manual

Noise Reduction  2D NR; 3D NR

Motion Detection  Yes

Image Rotation  180°

S/N Ratio  ≥ 55 dB

Audio Compression  PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1

Network Port  RJ-45 (10/100 Base-T)

Wi-Fi Standard  IEEE802.11b;IEEE802.11g;IEEE802.11n

Wi-Fi Frequency Range  2.4 GHz

Wi-Fi Transmission Rate  150 Mbps

Network Protocol  UDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NTP;SSL;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP

Interoperability  RTMP;CGI;SDK;ONVIF (Profile S&T)

Streaming Method  Unicast/Multicast

User/Host  20

Storage  FTP; Micro SD card (512 GB)

Browser  IE: IE 7 and later versions; Chrome; Firefox; Safari

Management Software  Player;Cloud Connection;Smart Player ;DMSS;ConfigTool;NVR;Smart PSS

Mobile Client  iOS;Android

Audio Input  1 channel (built-in mic)

Audio Output  1 channel (built-in speaker)

Alarm Linkage  Capture; preset; recording; audio; sending email

Alarm Event  Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power Supply  5 VDC, 1 A ± 10% (Type-C)

Power Consumption  Basic: 2 W Max: 5 W (illuminator +PTZ +speaker)

Environment

Operating Temperature  –10 °C to +40 °C (14 °F to +104 °F)

Operating Humidity  ≤ 95%

Protection  TVS 2000 V lightning proof; surge protection; voltage transient protection

Product Dimensions  130.4 mm × Φ 95.5 mm (5.13" × 3.76")

Net Weight  0.25 kg (0.55 lb)

Gross Weight  0.5 kg (1.10 lb)
