Camera Ip 5Mp Ai Eyeball 2 8M Fullc Ir30M Ip67 12V Poe Microsd 2 8Mm

Informazioni

IPC-HDW3549TM-AS-LED

Specifiche Tecniche

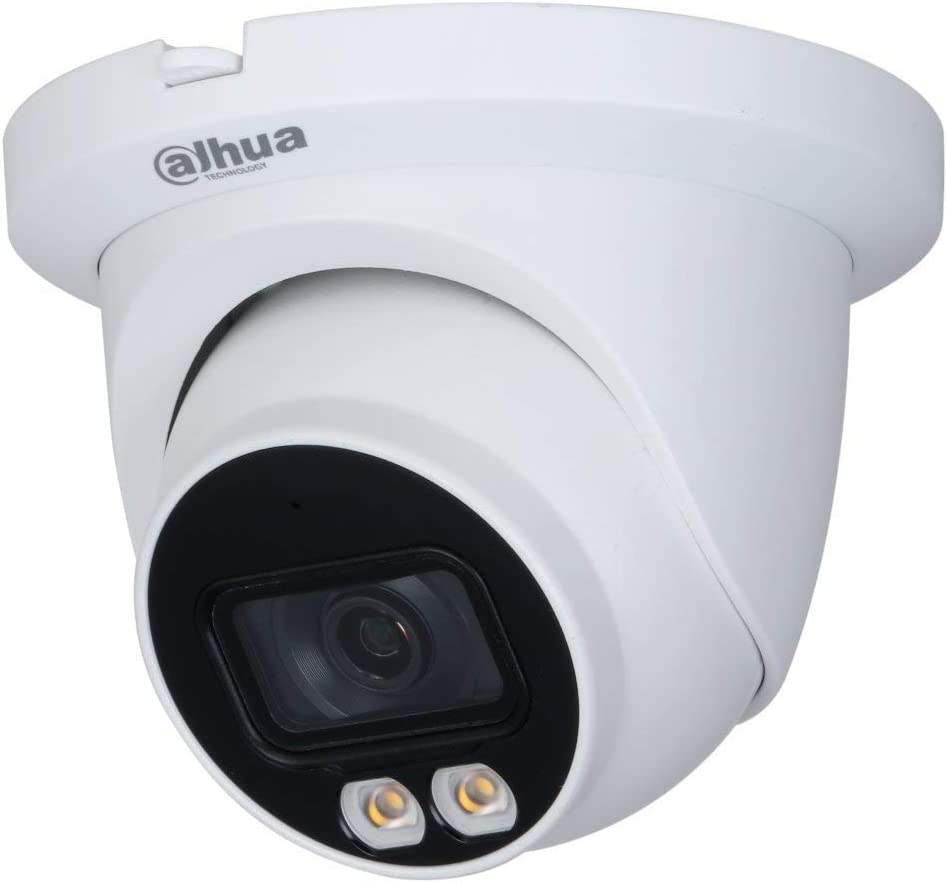

• 5MP Full-color Fixed-focal Warm LED Eyeball WizSense Network Camera
• > 5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
• > Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps

Dettagli

> H.265 codec, high compression rate, ultra-low bit rate

> Built-in warm light, max. illumination distance: 30 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)

> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection

> Supports max. 256 G Micro SD card, built-in Mic

> 12V DC/PoE power supply, easy for installation

> IP67 protection

Image Sensor

1/2.7”5Megapixel progressive CMOS

Max. Resolution

2592 (H) × 1944 (V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

[email protected]

Illumination Distance

30 m (98.4 ft) (Warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Fixed-focal

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

Field of View

2.8 mm: Horizontal 98° × Vertical 71° × Diagonal 129°

3.6 mm: Horizontal 77° × Vertical 56° × Diagonal 101°

Close Focus Distance

2.8 mm: 1.2 m (3.9 ft)

3.6 mm: 2.4 m (7.9 ft)

DORI Distance

Professional, Intelligent

IVS (Perimeter Protection)

Tripwire; intrusion (support the classification and accurate detection of vehicle and human)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream: 2592 × 1944 @1–20 fps

2688 × 1520 @1–25/30 fps

Sub stream: 704 × 576 @1–25 fps/704 × 480 @1–30 fps

Third stream: 1280 × 720@1–25/30 fps

Stream Capability

5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

Video Bit Rate

H.264: 3 kbps–8192 kbps

H.265: 3 kbps–8192 kbps

Scene Self-adaptation (SSA)

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)

Privacy Masking

Built-in MIC

Audio Compression

G.711a; G.711Mu; G726

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; SMD

RJ-45 (10/100 Base-T)

SDK and API

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Interoperability

ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;

20 (Total bandwidth: 64 M)

FTP; SFTP; Micro SD card (support max. 256 G); NAS

IE: IE8, IE9, IE11

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certification

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power Supply

Power Consumption

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/ less than 95%

Strorage Conditions

-40°C to +60°C (-40°F to +140°F)

Ingress Protection

Inner core: Metal

Cover: Metal

Decoration ring: Plastic

99.1 mm × Φ121.9 mm (3.9" × Φ4.8")

480 g (1.1 lb)

Gross Weight

660 g (1.5 lb)
