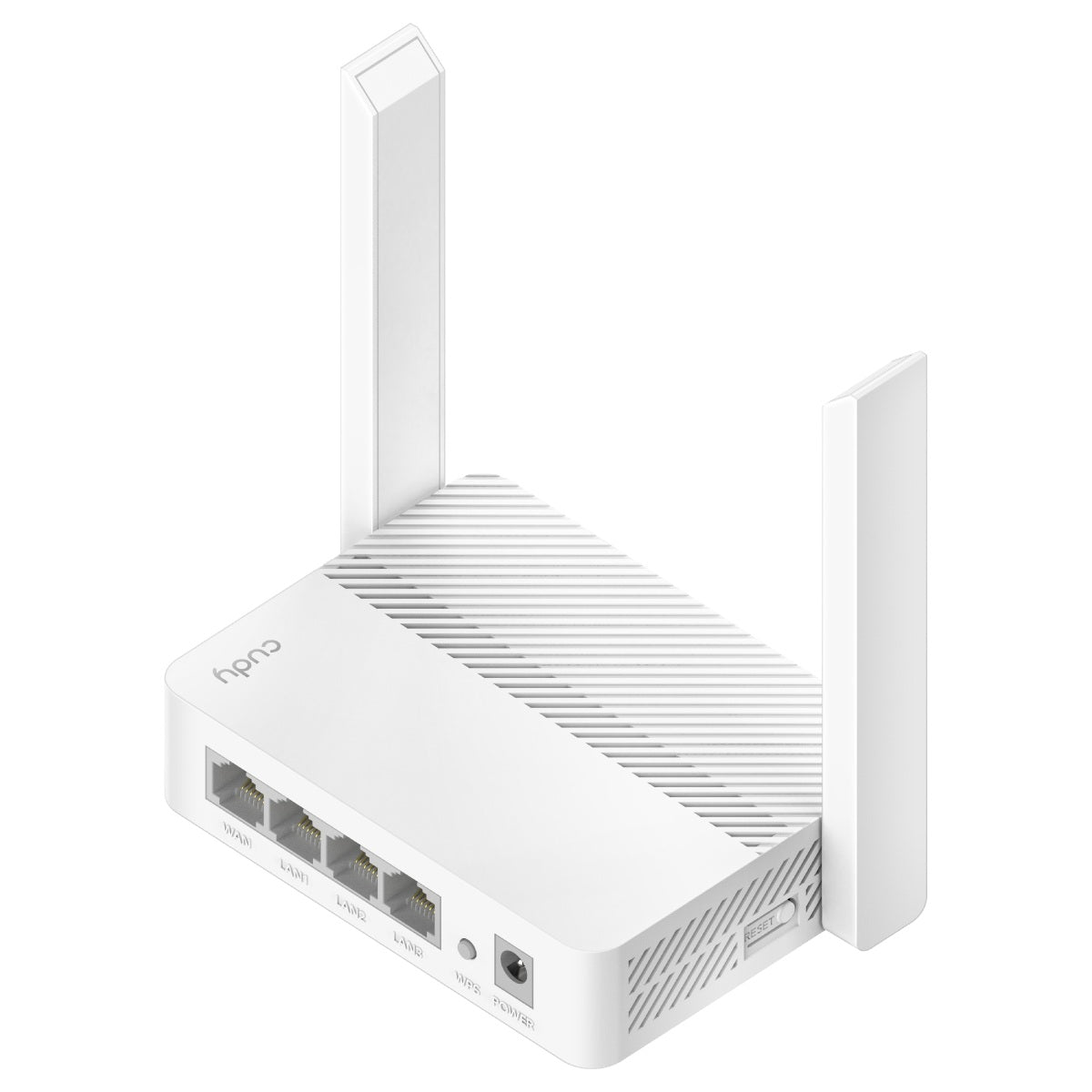

Router Ac1200 Dual 867Mbps 300Mbps 4P10 100 5Dbi Fixed Antenna

Informazioni

Router Wi-Fi dual-band AC1200

Specifiche Tecniche

• WR1200E 1.0
• Un router WiFi dual-band con tre porte Fast Ethernet consente una riproduzione fluida di video, giochi e un accesso a Internet massimo di 100 Mbps, con MU-MIMO.
• Wi-Fi dual band a 4 flussi 5

Dettagli

Wi-Fi 867Mbps + 300Mbps 1

4 porte Ethernet veloci

40 dispositivi connessi 2

Copre 100 m² (1.100 piedi²) 3

Client VPN di WireGuard, OpenVPN, ecc

Modalità router/AP/RE/WISP/client

Applicazione Cudy

Quattro porte Ethernet

Una porta WAN più tre porte LAN consentono colleghi più dispositivi tramite un cavo Ethernet stabile senza bisogno di un altro switch di rete.

Wi-Fi reattivo e con ampia copertura

MU-MIMO communicates with multiple deivces simultaneously and reduce the latency. Beamforming boosts signal towards the connected devices.

Configurazione semplice, gestione versatile

Pannello di stato della rete

Completa la configurazione in pochi minuti e conosci il sistema stato a colpo d'occhio con il pannello di stato.

Gestione dei dispositivi

Imposta l'ora di andare a dormire e una lista nera dei domini su regola il comportamento online dei tuoi figli.

Cliente VPN

PPTP/L2TP/WireGuard/OpenVPN allow you to connect multiple devices at once to your private or commercial VPN.

Sicurezza migliorata

WPA3 crittografa la tua comunicazione wireless e protegge la tua fuga di dati.

Applicazione Cudy

Manage your network from your phone. This model supports local control via the Cudy App.

Versione del modello

WR1200E 1.0

CPU Details

580 MHz Single-Core, MIPS24KEC

Memory/Storage

8 MB (64 Mbit ) NOR

64 MB (512 Mbit) DDR2

5 GHz Wi-Fi Speed

2.4 GHz Wi-Fi Speed

5 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

Wi-Fi Antennas

5 GHz Antenna Gain Max

2.4 GHz Antenna Gain Max

FEM or PA/LNA

5 GHz: 2× Internal

2.4 GHz: 2× Internal

Beamforming

Range Performance

Max: 170 m (558 ft)

Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.

Wall Performance

One wooden walls with thickness < 10 cm (4'')

One concrete wall with thickness < 20 cm (7'')

10/100 Mbps RJ45 Ports

Ethernet Notes

1× WAN port, the rest are LAN ports

Physical Buttons

Reset Button

Power Input

Power Methods

Power Adapter

Input: 100 ~ 240 V, 50/60 Hz AC

Output: 12V 1A DC

Max Power Consumption (W)

Idle Power Consumption (W)

Reliability

Environment

Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 95% non-condensing

Certifications

Installation

118×80×27.5 mm

4.65×3.15×1.08 inches

Product Weight

100 g (3.53 oz.)

Package Content

Power Adapter

Ethernet Cable

Installation Guide

Ordering Information

Retail Package Weight

350 g (12.35 oz.)

Retail Package Dimension

176×140.5×56 mm (6.93×5.53×2.2 inches)

Units per Carton

Carton Dimension

60×30×37.5 cm (23.62×11.81×14.76 inches)

Carton Gross Weight

15.3 kg (33.73 lbs)

Carton Net Weight

14.4 kg (31.75 lbs)

Versione del modello WR1200E 1.0

Wi-Fi Standards

Max Wi-Fi Modulation

Wi-Fi Efficiency

Wi-Fi Efficiency Note

MU-MIMO available on 5 GHz

Max Capacity

Recommended Client Upper Limit

Max Wi-Fi Channel Width

Wi-Fi Security

WPA/WPA2/WPA3

Guest Network

2.4 GHz, 5 GHz

Operation Modes

Wi-Fi Router

Access Point

Range Extender

Internet Failover Sequence

Per-User Rate Limiting

Address Reservation

DHCP Client List

IP Versions

IPv6 Protocols

Dynamic (SLAAC/DHCPv6)

Static (Fixed IP)

Passthrough

TTL Customization

IGMP Snooping

Port Forwarding

Port Triggering

SPI Firewall

DoS Protection

Application Layer Gateway

IPSec Passthrough

L2TP Passthrough

PPTP Passthrough

FTP Passthrough

TFTP Passthrough

H323 Passthrough

SIP Passthrough

RTSP Passthrough

VPN Performance

WireGuard Client (UL/DL): 49 / 43 Mbps

DNS Options

Rebind Protection

Override Clients' DNS

Wake on LAN

Online Detection

All Devices Management

Wi-Fi Time Schedule

IP/MAC Binding

Per-Devices Management

Internet On/Off

Online Time Schedule

Device Rename

Content Management

Domain Filter

LED Control

Local Control Method

Config Web Page

App Control

Remote Control Method

TR069/TR098/TR111/TR181

Config Page via HTTP

Firmware Upgrade

Local Update

Reliability

Timed Reboot

Backup and Restore

Diagnostic Tools

Internet Status

Devices Management

WISP Status

Wi-Fi Status

DHCP Server Status

System Version

Internet Speed

Wi-Fi Speed
